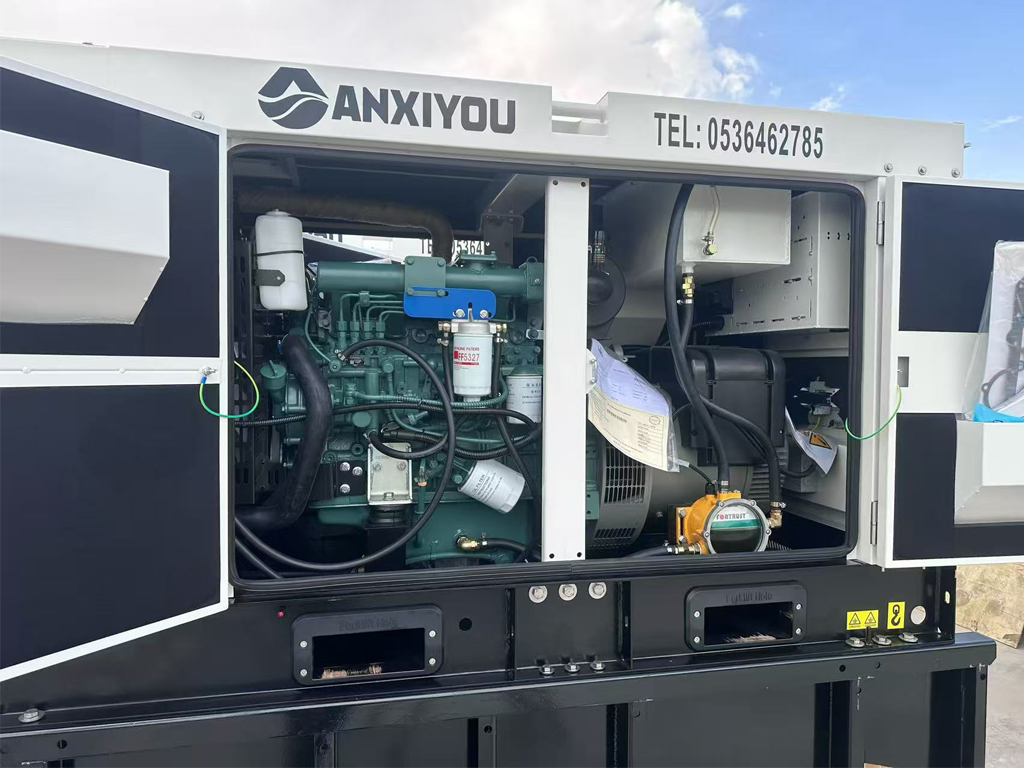

Long Autonomy 30kVA / 25kW Diesel Generator with 1000L Fuel Tank
PRODUCT DETAILS
Extended Endurance for Uninterrupted Operations
The 31.25kVA (25kW) diesel generator is a robust power solution engineered for environments where reliability cannot be compromised. By integrating a massive 1000L industrial-grade base fuel tank, this unit bridges the gap between standard backup power and long-term primary energy. It is designed to significantly reduce the logistical burden of refueling, making it the premier choice for remote sites and critical infrastructure.
Key Product Highlights
Exceptional Runtime: With a 1000L high-capacity tank, this unit can operate for over 150 hours at 75% load on a single fill—offering nearly a full week of autonomy for typical intermittent use.
Heavy-Duty Power Performance: Powered by a high-torque industrial engine that delivers exceptional transient response and handles motor-starting loads with ease.

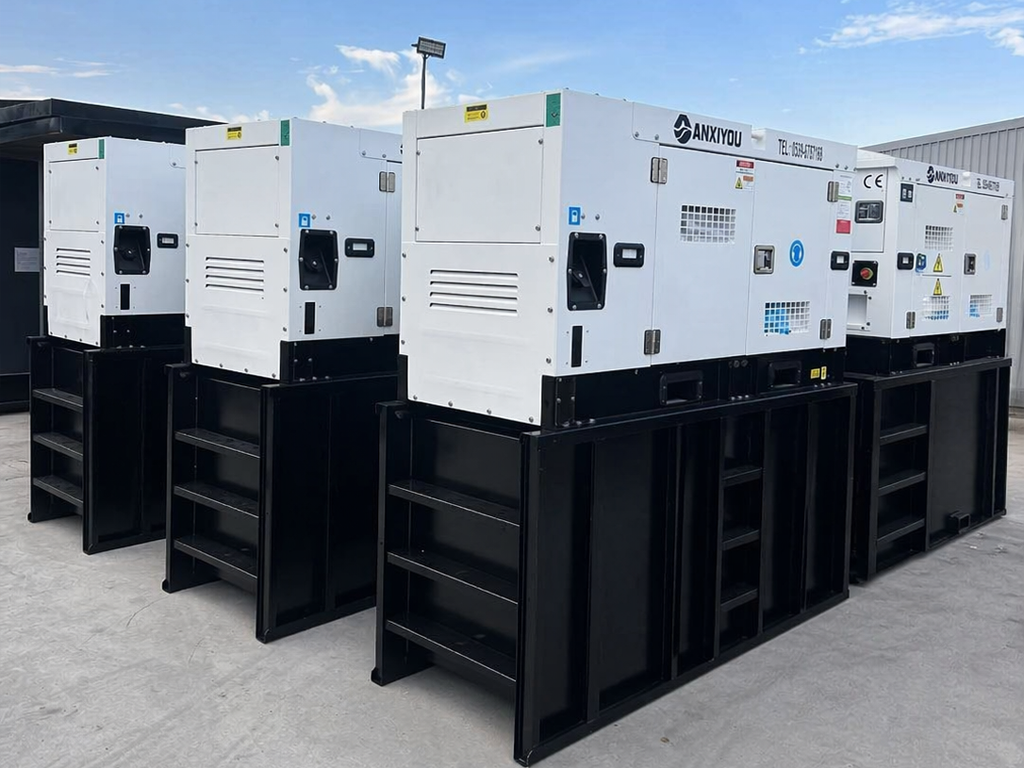

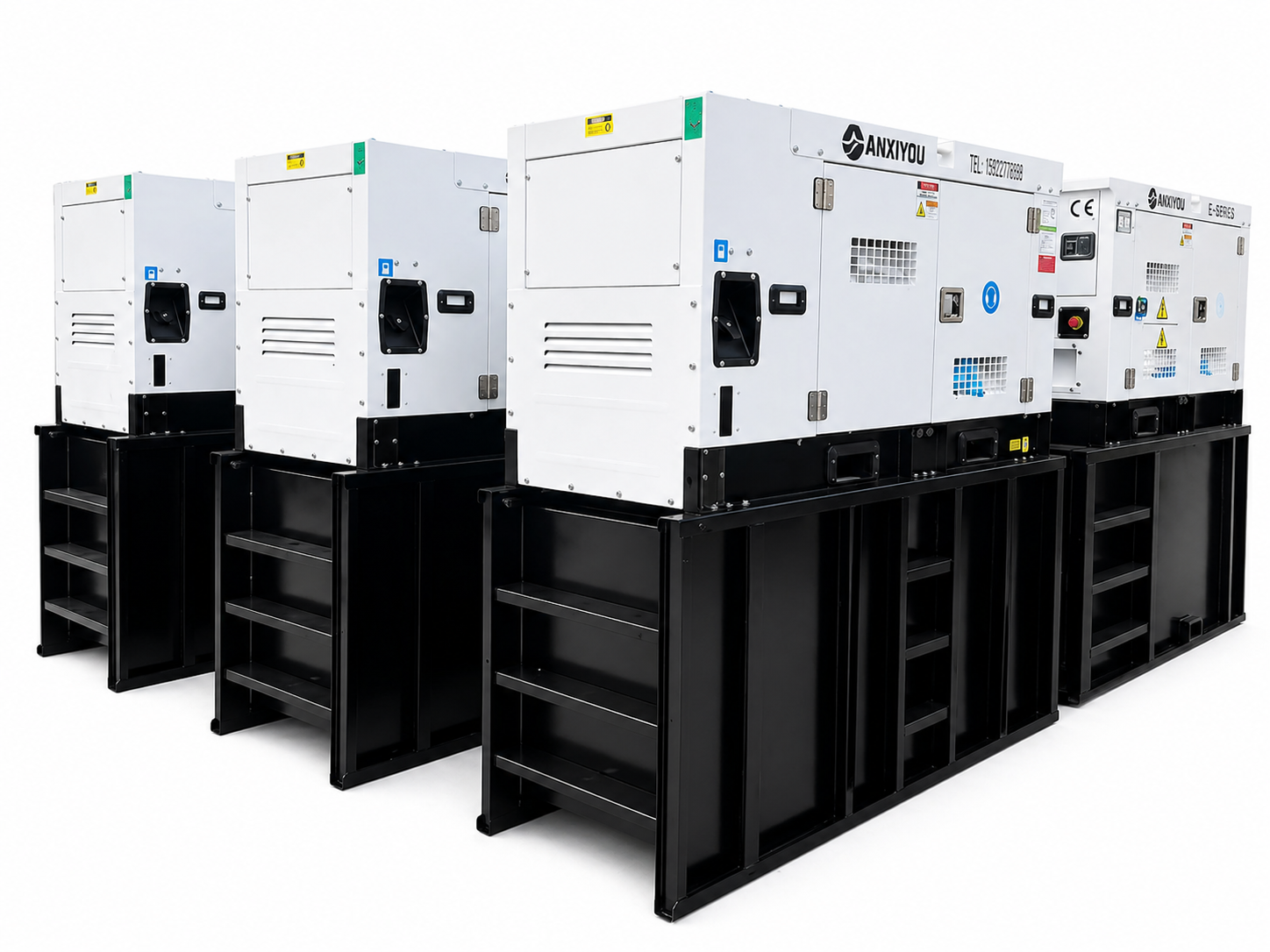

Reinforced All-in-One Chassis: The integrated 1000L tank is built into a heavy-duty steel base, lowering the center of gravity for safer transport and saving valuable installation space.
Premium Weatherproof Enclosure: Features a galvanized, powder-coated silent canopy with high-density acoustic foam, ensuring quiet operation and maximum resistance to corrosion in harsh outdoor climates.
Advanced Control & Connectivity: Equipped with a smart digital controller for real-time monitoring of engine health, output parameters, and precision fuel tracking with low-level alerts.
Ideal Applications
Telecom Hubs & Data Repeaters: Drastically reduces the frequency of high-cost refueling missions to remote or mountainous locations.
Off-Grid Construction & Infrastructure: Provides a stable, "set-and-forget" power source for long-term roadwork or site development.
Agricultural & Livestock Facilities: Ensures critical systems like ventilation and automated feeding remain active during extended outages without constant supervision.
Emergency Disaster Relief: Serves as a reliable, long-lasting energy station for field hospitals and command centers.
Product Specifications
ltem | Value / القيمة | البند |
Factory Model | AXY-25XC | طراز المصنع |
Genset Prime Power | 31.25KVA / 25KW | القدرة الساسية للمولد |
Factory Date | 2025-12-20 | تاريخ التصنيع |
Controller Pannel | SmartGen 6120N | لوحة التحكم |
Engine Brand | FAWDE | علمة المحرك التجارية |
Engine Model | 4DW92-42D | طراز المحرك |
Engine Prime Power | 25KVA / 31KW | القدرة الساسية للمحرك |
Engine Max Power | 27KVA / 34KW | أقصى قدرة للمحرك |
Rated Speed | 1800RPM | السرعة المقدرة |
Cylinder quantity | 4 | عدد السطوانات |
Cylinder Arrangement | Vertical ln-line | ترتيب السطوانات |
Aspiration | Naturally Aspirated | نظام السحب |
Bore x Stroke | 92mm x 100mm | القطر × الشوط |
Displacement | 2.66L | الزاحة |
Compression Ratio | 17:1 | نسبة الضغط |
Type lnjection System | Direct lnjection | نوع نظام حقن الوقود |
Speed Adjustment Method | Mechanical Governor | طريقة تنظيم السرعة |
Total Lubrication System Capacity | 8L | إجمالي سعة نظام التشحيم |
Fuel Consumption at 50% load | ~4.1L/h | استهلك الوقود عند حمل 50% |
Alternator Brand | LEROY-SMOER | علمة المنوب التجارية |
Alternator Model | TAL-A42-E J 6S/4 | طراز المنوب |
Rated Voltage | 400V / 230V | الجهد المقدر |
Frequency | 60HZ | التردد |
Power Factor | 0.8 | معامل القدرة |
Alternator Enclosure | lP23 | درجة حماية المنوب |
Circuit Breaker Brand | ABB | علمة قاطع الدورة |
AMPS | 40A | التيار أمبير |
Phase | Three-Phase Four-Wire | الطوار |
Fuel Tank | 1000L | خزان الوقود |
Dimensions | 2200mm x 900mm x 2150mm | البعاد |
Weight (approx.) | ~1.5tons | الوزن تقريببا |
