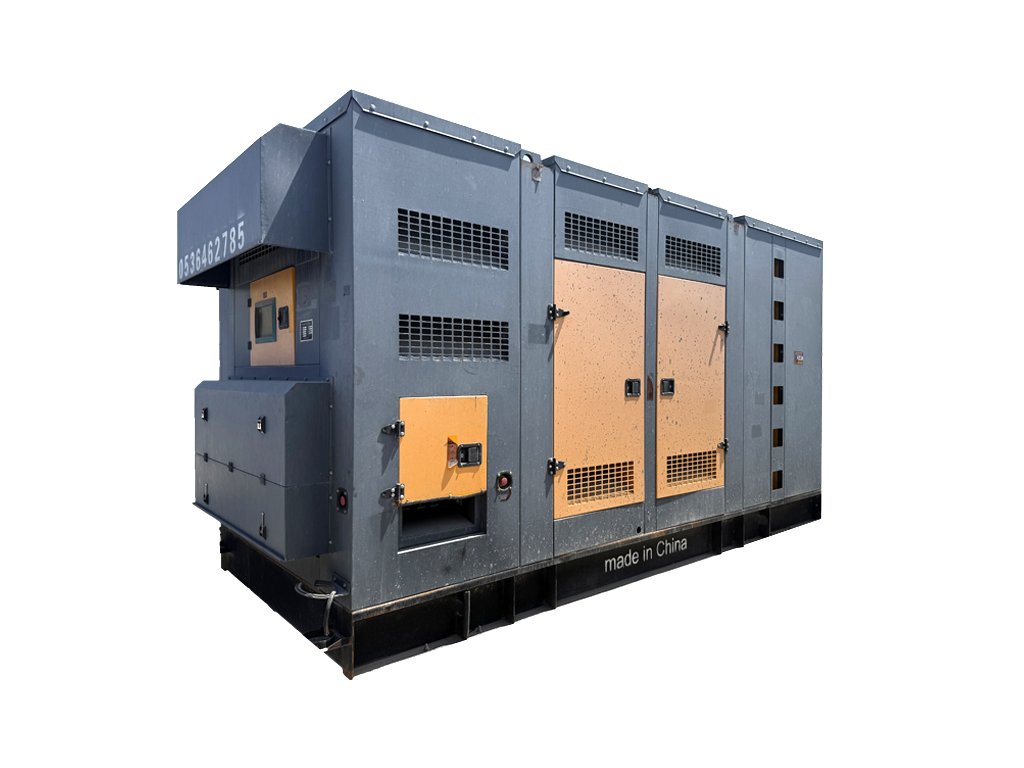

ANXIYOU 1000kVA / 800kW Diesel Generator Set

E-mail

Product Overview

The 1000kVA / 800kW diesel generator set is a high-capacity industrial power solution designed for large-scale applications requiring stable and continuous electricity supply. It is widely used in factories, commercial complexes, data centers, construction projects, and critical infrastructure as either prime or standby power.

Key Features

This generator set is equipped with a high-performance engine and advanced alternator system, ensuring strong load capacity, excellent voltage stability, and reliable operation under heavy-duty conditions. The unit is designed for long-hour continuous running with optimized fuel efficiency and low vibration performance.

Performance Advantages

Built for demanding environments, the 1000kVA generator set delivers consistent output even under high ambient temperatures, dust, and complex load conditions. Its robust structure and advanced control system ensure safe, stable, and efficient operation.

Applications

Ideal for industrial manufacturing, large commercial facilities, mining operations, data centers, hospitals, and other critical power demand scenarios where uninterrupted electricity supply is essential.

Product Specifications

Item	Value / القيمة	البند
Factory Model	AXY-1000CMS	طراز المصنع
Genset Prime Power	1000kVA / 800kW	القدرة الأساسية للمولد
Engine Brand	Cummins	علامة المحرك التجارية
Engine Model	KTA38-G2A	طراز المحرك
Engine Prime Power	1143kVA / 915kW	القدرة الأساسية للمحرك
Engine Max Power	1258kVA / 1007kW	أقصى قدرة للمحرك
Rated Speed	1800RPM	السرعة المقدرة
Cylinder quantity	12	عدد الأسطوانات
Cylinder Arrangement	60° Vee	ترتيب الأسطوانات
Aspiration	Turbocharged and Aftercooled	نظام السحب
Bore x Stroke	159mm x 159mm	القطر × الشوط
Displacement	37.8L	الإزاحة
Compression Ratio	14.5:1	نسبة الضغط
Type Injection System	Cummins PT (Direct Injection) with STC	نوع نظام حقن الوقود
Speed Adjustment Method	Electronic Governor	طريقة تنظيم السرعة
Total Lubrication System Capacity	135.1L	إجمالي سعة نظام التشحيم
Fuel Consumption at 50% load	122.0L/h	استهلاك الوقود عند حمل %50
Rated Voltage	400V / 230V	الجهد المقدر
Frequency	60HZ	التردد
Power Factor	0.8	معامل القدرة
Alternator Enclosure	IP23	درجة حماية المنوب
Phase	Three-Phase Four-Wire	الأطوار
Weight (approx.)	~12.5tons	الوزن تقريبًا
