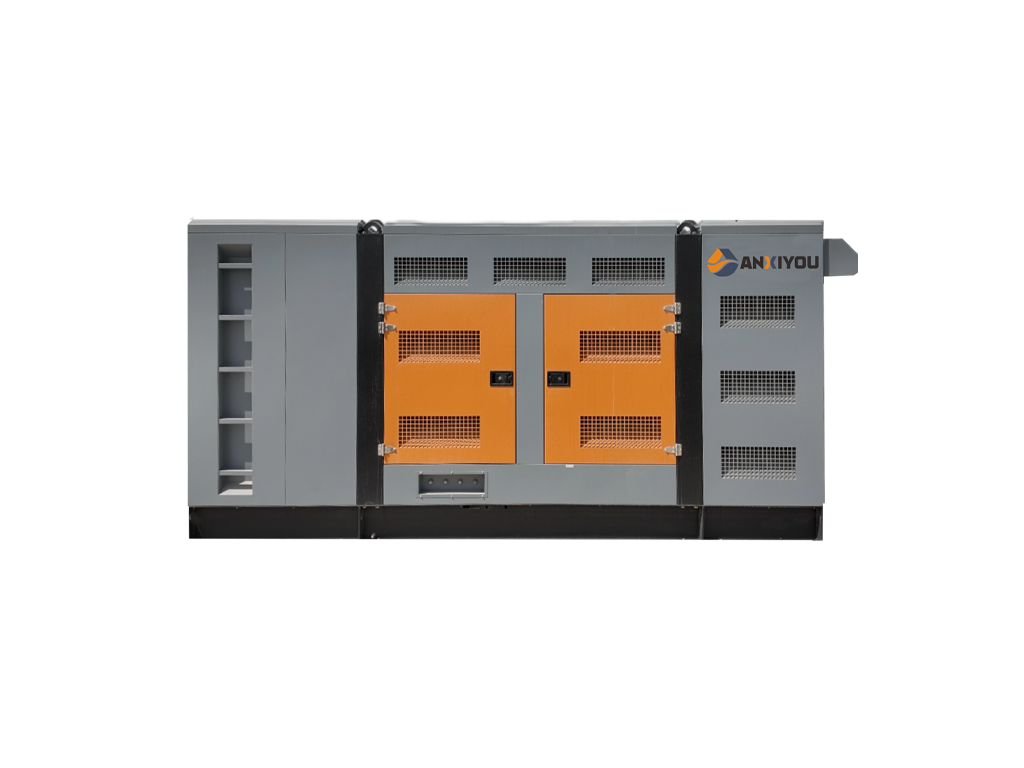

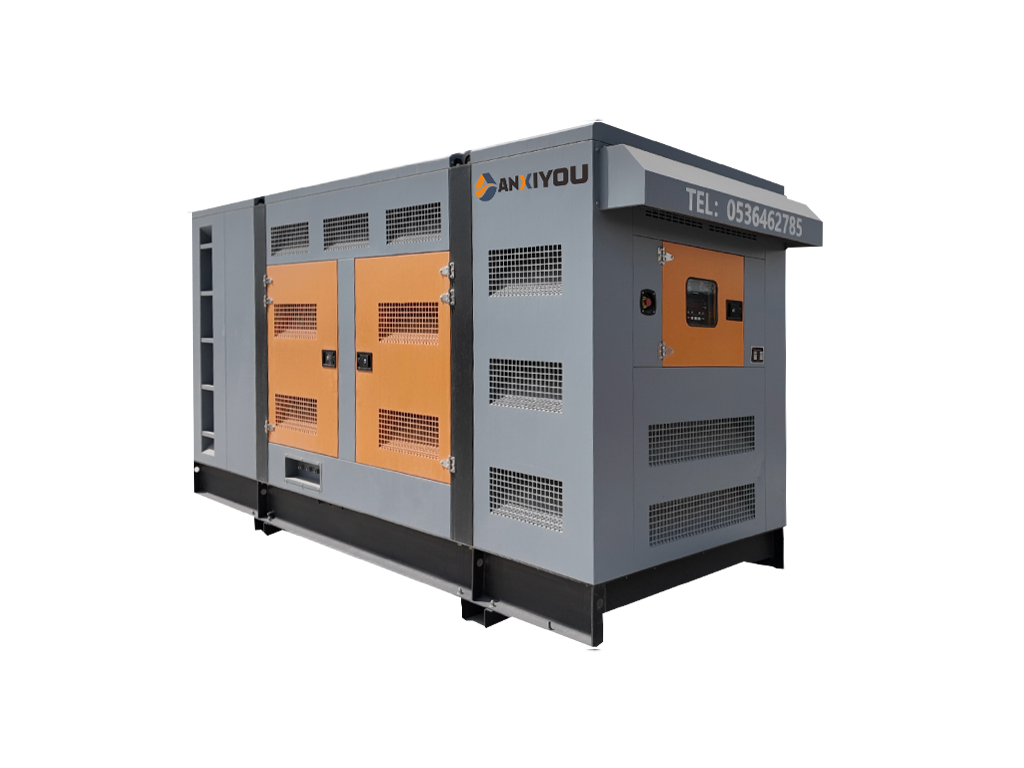

ANXIYOU 1250kVA / 1000kW Diesel Generator Set

E-mail

Product Overview

The 1250kVA / 1000kW diesel generator set is a high-capacity industrial power solution designed for large-scale applications requiring stable and continuous electricity supply. It is suitable for prime or standby power use in critical infrastructure and heavy-duty operations.

Key Features

Equipped with a high-performance engine and advanced alternator system, the unit delivers strong load capacity, excellent voltage stability, and efficient fuel consumption. Its robust design ensures reliable operation under continuous and demanding working conditions.

Performance Advantages

The generator set is engineered for high reliability in harsh environments, including high temperatures, dust, and heavy load fluctuations. It provides consistent output and long-term operational durability with enhanced safety and control systems.

Applications

Widely used in large industrial plants, mining operations, data centers, hospitals, and commercial complexes, ensuring uninterrupted and stable power supply for critical energy demands.

Product Specifications

Item	Value / القيمة	البند
Factory Model	AXY-1250CMS	طراز المصنع
Genset Prime Power	1250kVA / 1000kW	القدرة الأساسية للمولد
Engine Brand	Cummins	علامة المحرك التجارية
Engine Model	KTA50-G3	طراز المحرك
Engine Prime Power	1097kW / 1470hp	القدرة الأساسية للمحرك
Engine Max Power	1227kW / 1645hp	أقصى قدرة للمحرك
Rated Speed	1800RPM	السرعة المقدرة
Cylinder quantity	16	عدد الأسطوانات
Cylinder Arrangement	60° Vee	ترتيب الأسطوانات
Aspiration	Turbocharged & Aftercooled	نظام السحب
Bore x Stroke	159mm x 159mm	القطر × الشوط
Displacement	50.3L	الإزاحة
Compression Ratio	13.9:1	نسبة الضغط
Type Injection System	Cummins PT (Pressure-Time)	نوع نظام حقن الوقود
Speed Adjustment Method	Electronic Governor	طريقة تنظيم السرعة
Total Lubrication System Capacity	177L	إجمالي سعة نظام التشحيم
Fuel Consumption at 50% load	138L	استهلاك الوقود عند حمل %50
Rated Voltage	440V / 480V	الجهد المقدر
Frequency	60Hz	التردد
Power Factor	0.8	معامل القدرة
Alternator Enclosure	IP23	درجة حماية المنوب
Phase	Three-Phase Four-Wire	الأطوار
Weight (approx.)	5.36 tons	الوزن تقريبًا
