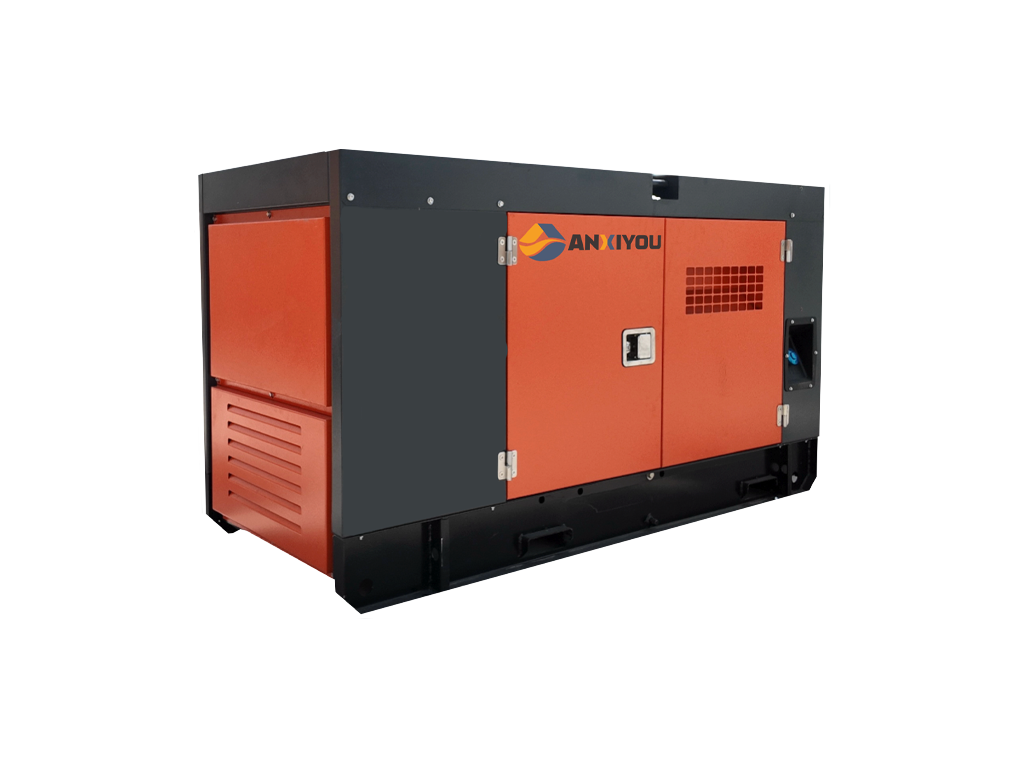

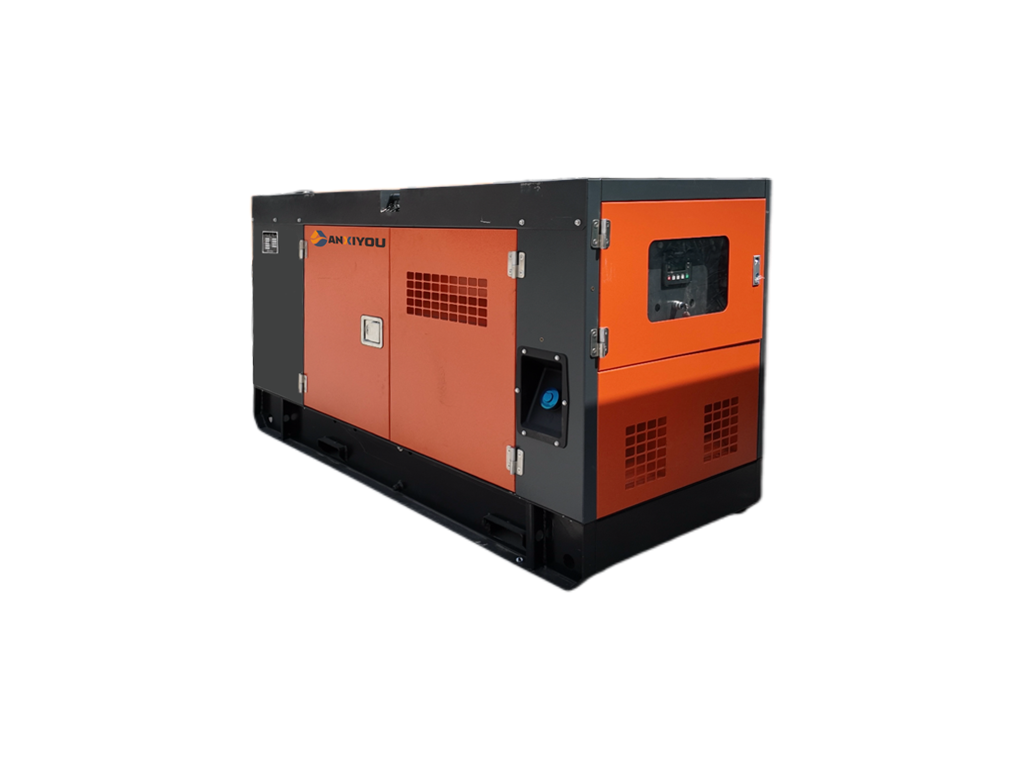

ANXIYOU 62kVA / 50kW Diesel Generator Set

E-mail

Product Overview

The 62kVA / 50kW diesel generator set is a compact and reliable power solution designed for small to medium commercial, residential, and light industrial applications. It provides stable backup or prime power supply in areas with unstable grid electricity.

Key Features

The unit is equipped with a high-quality diesel engine and efficient alternator, ensuring stable voltage output, low fuel consumption, and reliable performance. Its compact structure allows easy installation and simple maintenance.

Performance Advantages

The generator set delivers consistent performance under varying load conditions and is designed for durability and long service life. It operates reliably even in high-temperature and demanding environments.

Applications

Widely used in small factories, shops, offices, construction sites, farms, and remote areas, providing a practical and cost-effective power solution.

Product Specifications

Item	Value / القيمة	البند
Factory Model	AXY-50SC	طراز المصنع
Genset Prime Power	62KVA / 50kW	القدرة الأساسية للمولد
Controller Pannel	SmartGen 4010N	لوحة التحكم
Engine Brand	SDEC	علامة المحرك التجارية
Engine Model	4ZT3.5-G21	طراز المحرك
Engine Prime Power	75KVA / 60kW	القدرة الأساسية للمحرك
Engine Max Power	82KVA / 66kW	أقصى قدرة للمحرك
Rated Speed	1800RPM	السرعة المقدرة
Cylinder quantity	4	عدد الأسطوانات
Cylinder Arrangement	In-line	ترتيب الأسطوانات
Aspiration	Turbocharged	نظام السحب
Bore x Stroke	102mm x 108mm	القطر × الشوط
Displacement	3.53L	الإزاحة
Compression Ratio	17:1	نسبة الضغط
Type Injection System	Direct Injection	نوع نظام حقن الوقود
Speed Adjustment Method	Electronic	طريقة تنظيم السرعة
Total Lubrication System Capacity	12L	إجمالي سعة نظام التشحيم
Fuel Consumption at 50% load	~6.6L/h	استهلاك الوقود عند حمل %50
Alternator Brand	ANXIYOU	علامة المنوب التجارية
Alternator Model	AXY-224E	طراز المنوب
Rated Voltage	400V / 230V	الجهد المقدر
Frequency	60HZ	التردد
Power Factor	0.8	معامل القدرة
Alternator Enclosure	IP23	درجة حماية المنوب
Circuit Breaker Brand	DELIXI	علامة قاطع الدورة
AMPS	90.2A	التيار أمبير
Phase	Three-Phase Four-Wire	الأطوار
Fuel Tank	~200L	خزان الوقود
Dimensions	2200mm x 1000mm x 1650mm	الأبعاد
Weight (approx.)	~2.0tons	الوزن تقريبًا
